scrapper manure removal system for a type layer cage
Description of layer chicken cage
The Layer chicken cage system use hot galvanized system, corrosion resistance, the use life is 15 to 20 years. It has A type layer chicken breeding equipment and H type layer chicken breeding equipment. Use advance ventilation system, lighting system and automatic control system, save energy consumption. Improving labor productivity, decrease the ratio of egg and feed. Using belt manure removal system, make the chicken manure dry become granular, reduce the environment pollution. The rate of chicken manure reuse improved. It is the optimal eco-environment protection breeding equipment for healthy layer chicken.
Specification
| A-TYPE | Item | 3-tier 5-door | 3-tier 4-door | 4-tier 5-door | 3-tier 4-door |
| Set capacity | 90 | 120 | 120 | 160 |
| Cell capacity | 3 | 4 | 3 | 4 |
| Weight | 45kg | 54kg | 60kg | 72kg |
| Cage size | 195*35*38cm | 195*46*42cm | 195*35*38cm | 195*46*42cm |
| Cell size | 39*35*38cm | 39*46*42cm | 39*35*38cm | 39*46*42cm |
| H-TYPE | Item | 3-tier 4-door | 3-tier 2-door | 4-tier 4-door | 4-tier 2-door |
| Set capacity | 144 | 96 | 192 | 128 |
| Cell capacity | 6 | 8 | 6 | 8 |
| Weight | 60kg | 32kg | 80kg | 42kg |
| Cage size | 180*60*43cm | 120*62*48cm | 180*60*43cm | 120*62*48cm |
| Cell size | 45*60*43cm | 60*62*48cm | 45*60*43cm | 60*62*48cm |

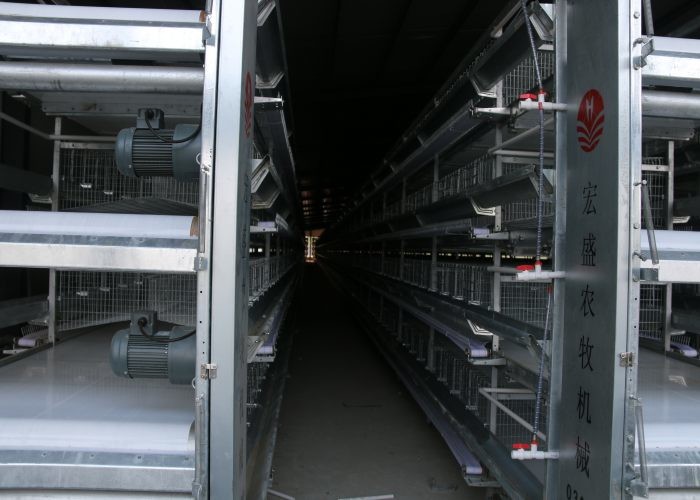

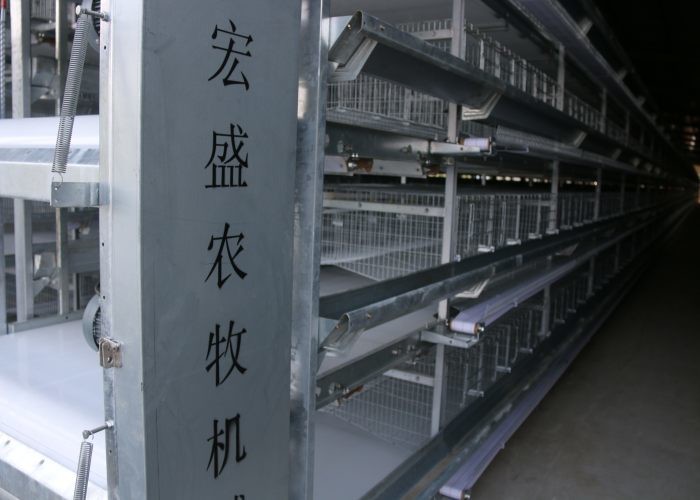

A type and H type chicken cage
Hongsheng A type and H type chicken cage system is special designed for medium-sized farm or chicken farm large-scale chicken farm, breeding egg laying chickens, the system adopt semi automatic technology, made of the high quality material, make sure the house could running for long time,it is good choice for modern farm construction, structure of the layer farm could come with the following items
1. cage frame and mesh system
2. Full automatic Drinking system
3. Silo Feed conveying system
4. Semi feeding system
5. Egg collect system
6. Manure cleaning system
7. Ventilation system
8. Rolling curtains system (option)
9. Lighting system
10.Electric control system
A type and H type cage frame and mesh system could be customized which is base on client’s special house construction requirements, suitable for any country with different environmental condition.It is welcomed design for customers.
